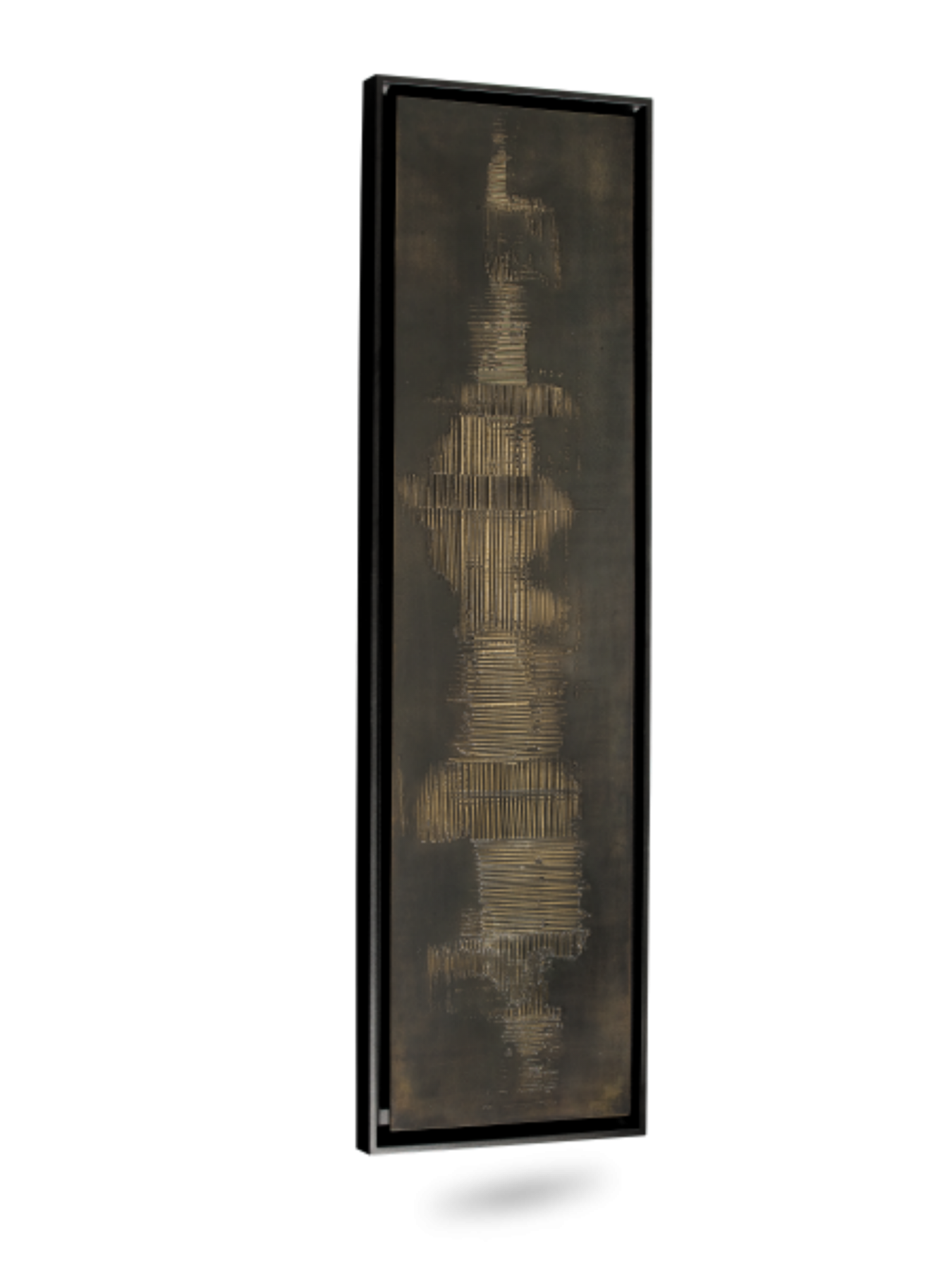

GREENOR Fancoil GREENOR XL

Greenor XL is a vertical, ecological, & antiviral Reversible unit:

  • 100% copper patented exchanger, allowing high performance in heating (23,270 Btu) and cooling (10,304 Btu)
  • Works with all brands friendly to Air-Water heat pumps or boilers (heating only in this case)
  • Real value for luxury interiors with CINIER high-end design & finish. Individually hand painted by Johnanne Cinier
  • Optional dimmable LED frame.

Ultra Silent

Silent Breeze

Purified draft-free air providing exceptional climate for your environment

greenor chaud froid

Heating/Cooling

Allows heating or air conditioning with Air/Water heat pump (chilled water technology)

Antiviral exchanger / UV filter

100% copper Patented vertical exchanger. Air purified of germs in less than 2 hours

Solid Craftmanship

Assembled on an order-by-demand basis, taking up to 20h for one Greenor XL

  • Important Details

    Unique patented innovation:

    Air is diffused on only one side of the Greenor– Requested a minimum of 1 meter of clearance from the wall. Choose our models carefully, either the “RIGHT side” or on the “LEFT side” depending on the configuration of your room(s).

    • Allows heating and air conditioning with an Air/Water heat pump (hydraulic/chilled water technology)
      • Antibacterial & antiviral: 100% copper vertical exchanger (anti-legionella: See study* of the properties of copper on viruses, including Covid-19).
      • 2x High performance magnetic stainless steel filters (easy maintenance)
      • OPTION: UVA LED + Photocatalysis sterilization (TiO2 on stainless steel filter): to purify the air (kills bacteria and viruses in less than 2 hours).
      • Condensate collection tray covered with copper (anti legionella)
      • Ultra quiet – 14.8 Db in speed 1 at 1 meter from the device.
      • Very low power consumption: from 9W to 19W in V3, i.e. 14 Watts/h on average
      • Draft-Free (Thanks to the diffusion on one side VERTICAL, 74.8 inches tall, very low air flow – 1 yard/s)
      • Extra-flat: 5.7 inches of depth
      • Individually controllable by the built-in thermostat – WIFI connected via TUYA Smart (control the unit via tablet or smartphone) – Possible option in wired thermostat or other thermostats at the customer’s request
      • Made in France in the CINIER workshops (reduced carbon footprint)

    Maintenance: cleanable magnetised stainless steel filter

    • Every 6 months: cleaning recommended with pressursed water on stainless-steel filter
    • No need to change the recommended filters as they are STAINLESS STEEL

    (*) Aerosol and surface stability of HCoV-19 (SARSCoV-2) compared to SARS-CoV-1 Neeltje van Doremalen, James O. Lloyd-Smith, Vincent J. Munster / New England Journal of Medicine – March 2022

  • Options

    Colors available: → Pigment color chart

    2 or 4 hot or cold tubes (fancoil)

    UVA LED OPTION + Photocatalysis sterilization (TiO2 on stainless steel filter): to purify the air (destroys bacteria and viruses in less than 2 hours)

  • Thermostat

    Built-in thermostat is supplied by standard on each unit (discreet on the side of the device at eye level).

    No light pollution (turns off completely after 3 seconds).

    Serial WIFI connection provided to remotely manage the device on Tablet or Smartphone (TUYA SMART).

    OPTION Identical master/slave wall-mounted thermostat to control several GREENOR on the same thermostat.

  • Capacity

    A/ Heating:

    Water at 158°F: Delta T50 (167/149/68°F):

    • Maximum heating power: 23,270 Btu
    • Average heating power: 19,926 Btu
    • Minimum heating power: 13,307 Btu

    Water at 115.7°F (122/109.4/68°F)

    • Maximum heating power: 12,010 Btu
    • Average heating power: 10,475 Btu
    • Minimum heating power: 7,131 Btu



    B/ Air conditioning:

    Water at 44.6/53.6°F: Eurovent test (44.6/53.6/80.6°F):

    • Maximum cold power: 10,277 Btu
    • Average cold power: 6995 Btu
    • Mini cold power: 5050 Btu

    Other information:

    • Airflow: 171 / 279 / 339 Cfm
    • Water flow: 1.6 GPM
    • Pressure drop: 7.1 /11.9/14.8 kPa | 0.071/ 0.119/0.148 BAR
    • Sound power: 13.6 / 24.7 /29.3 dB (5m acc.ISO 11203)
    • Power consumption: 12.6 / 16.8 /20.1 Watts/h

    Eurovent test by TUV, Germany.

  • Summary Sheet

    Download GREENOR XL Summary Sheet

    Our Brochure Greenor & Greenor XL

    For any technical information on the installation of CINIER units, you can contact by email: [email protected]

  • 3D

    Download the Cinier app for an augmented reality model of our Greenor XL unit

    else, File on request
