Leon 76 1

Leon 76

Collezione Belle Epoque

Sophisticated and elegant

Contact
  • BE-02 Gris mat

Sophisticated and elegant

Leon 76

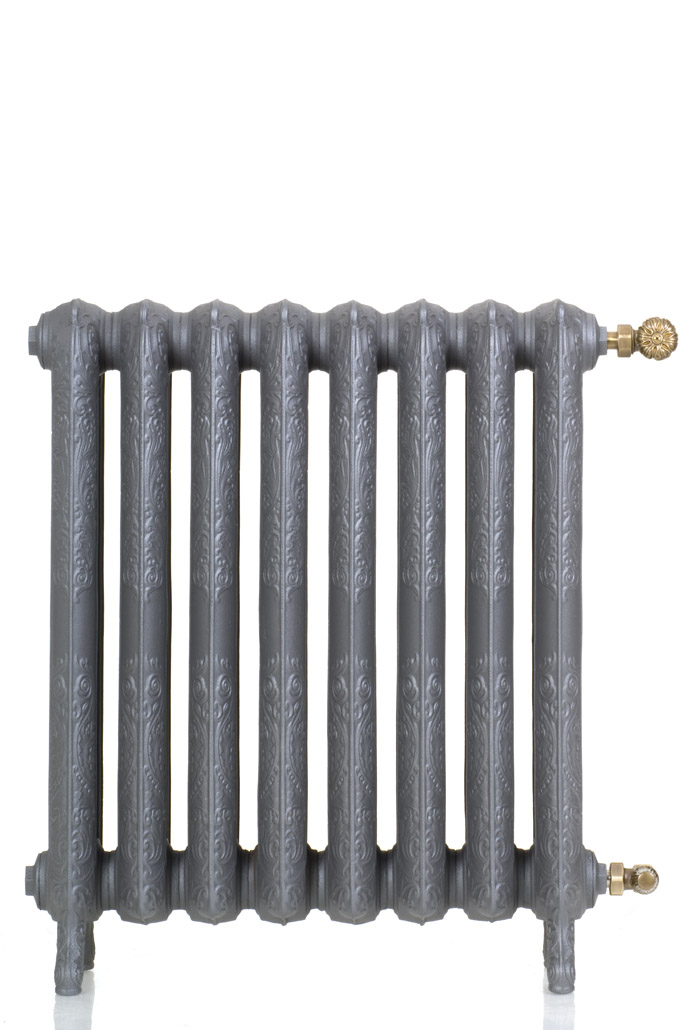

Collezione Belle Epoque Radiatori in ghisa

Il modello Voltaire è un radiatore in ghisa fabbricato per la primissima volta in Francia intorno al 1890. Grazie alla sua altezza ridotta, Voltaire 47 è ideale in spazi confinati o laddove vi sia uno spazio ristretto, come nelle nicchie sotto finestra che ritroviamo negli appartamenti haussmanniani.

  • Details
    • Available colors:

    standard colours: cast iron grey, matt grey, matt black, pearl black.

    optional colours: bright white, antique black, antique copper, antique gold, all RAL colours.

    H76 cm x W42,7 cm – 59 kg – 580W
    H76 cm x W50,7 cm – 70 kg – 696W
    H76 cm x W58,7 cm – 82 kg – 812W
    H76 cm x W66,7 cm – 94 kg – 928W
    H76 cm x W74,7 cm – 105 kg – 1044W
    H76 cm x W82,8 cm – 117 kg – 1160W
    H76 cm x W90,8 cm – 129 kg – 1276W
    H76 cm x W98,7 cm – 140 kg – 1392W
    H76 cm x W106,7 cm – 152 kg – 1508W
    H76 cm x W114,7 cm – 164 kg – 1624W
    H76 cm x L122,7 cm – 176 kg – 1740W

    (Puissance EN442, 75/65/20, Δt 50°C)

  • Technologies

    Highly resistant, cast iron has an extraordinary quality of heating, it has survived the centuries (used for heating over 150 years).

    Made in Europe, the BELLE EPOQUE cast iron radiators come in several heights and finishes upon request. Available in Glossy White, Matte Black, Black Pearl, Cast Iron Gray or in such rarer finishes as Antique Gold and Antique Copper. They benefit from the latest manufacturing technology and are finished with fume-free, non-toxic and environmentally friendly paints.

    Maximum operating pressure: 8 bars. Pressure testing: 10,50 bars. Maximum output: 110°C Exponent: n = 1.2775

  • Installation
    • Imperative : The quality of water is required to meet the standards VDI 2035 for the cast iron radiators : a low conductivity below 100 μS.PH, a TH of 0.2 and a PH between 7 and 10. More information on : https://www.cinier.com/it/belle-epoque/
    • CAST IRON model, run by professionals suitable for handling and weighing the model
    • We recommend to use sleeving kits to minimize installation completion.
