UNIS XL

UNIS XL

GREENOR XL

Minimal aesthetics

Contact
  • Multicolour
  • Multicolour
  • Multicolour

Minimal aesthetics

UNIS XL

GREENOR XL

French patent supported by BPI Innovation, created by Michel Cinier.

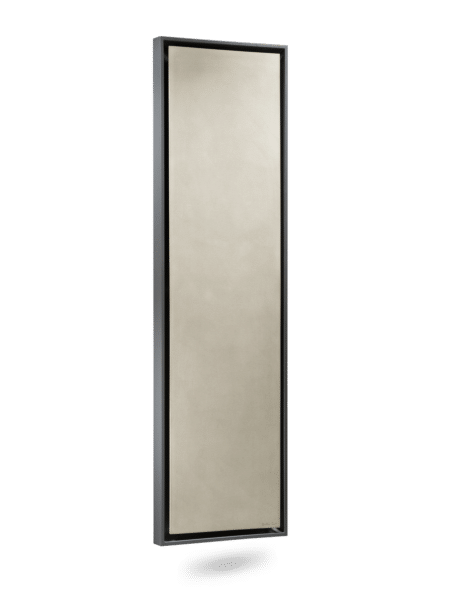

Ecological and antiviral vertical air conditioning unit – 2 pipes for heating or cooling (fan coil) with very high energy efficiency and 100 % copper heat exchanger. Decorative front in hand-finished Olycal stone.

Simplicity and sobriety, the Solid models can also be patinated in Quartz Grey, Olycale White and other pigments on request and to measure ([email protected]).

LED frame is available to enhance the sculpture.

  • Important note

    Air is diffused on only one vertical side of the appliance – maintain a minimum clearance of 1 metre from the wall. Please therefore choose either the RIGHT or LEFT model depending on the configuration of the rooms.

    Maintenance: cleanable magnetised stainless steel filter

    • Every 6 months: cleaning recommended with pressurised water (tap)
    • No need to change the recommended filters as they are STAINLESS STEEL
  • Strengths

    • Heating or cooling (air conditioning) with an air-water heat pump (chilled water technology)
    • Patented vertical heat exchanger – antibacterial, antiviral and 100 % copper (anti-legionella)
    • 2 x high performance magnetic stainless steel filters (easy maintenance)
    • Copper-coated condensate drip tray (anti-legionella)
    • Ultra-quiet – 13.6 / 24.7 /29.3 dB (5m acc.ISO 11203)
    • Very low power consumption: 9 to 19 W on speed 3, or 14 W/h average
    • No draughts (thanks to single side 190 cm VERTICAL diffusion at very low air flow rates, less than 1 m/s)
    • Ultra-flat: 14.5 cm overall thickness
    • Very aesthetically pleasing, customisable, vertical design (each is unique)
    • Individually controllable using the thermostat built into the appliance – WiFi connection via Tuya Smart (for appliance control via tablet or smartphone) – also available with wired or other thermostats on request

  • Heating / Cooling Capacity

    A/ Heating:

    –  70°C Water : Delta T50 (75/65/20°C) :

    Heating capacity Maxi : 6820 Watts

    Heating capacity middle : 5840 Watts

    Heating capacity Mini : 3900 Watts

    46.5 °C  Water (50/43/20°C)

    Heating capacity Maxi : 3520 Watts

    Heating capacity middle : 3070 Watts

    Heating capacity Mini : 2090 Watts

    B/ Cooling:

    7/12°C Water : Eurovent test (7/12/27°C) :

    Cooling capacity Maxi : 3012 Watts

    Cooling capacity middle : 2050 Watts

    Cooling capacity Mini : 1480 Watts

    Others informations:

    Air volume flow : 290 / 474 /576 m³/h

    Water volume flow : 353.1 dm3/H

    Water pressure drop : 7.1 /11.9/14.8 kPa

    Pressure sound : 13.6 / 24.7 /29.3 dB (5m acc.ISO 11203)

    Elec. consumption : 12.6 / 16.8 /20.1 Watts/h



    Eurovent  TUV, Germany.

  • Options

    CINIER Color Chart: → Nuancier de pigments

    OPTION PIPES 2 or 4 pieces

    OPTION LEV UVA + photocatalytic sterilisation (TiO2 on stainless steel filter): to purify the air even during a pandemic (destroys bacteria and viruses in under 2 hours)

  • Thermostat

    Individual thermostat supplied as standard on each appliance (discreetly positioned on
    the side at chest height)

    No light pollution (switches off completely after 3 sec)

    WiFi connected as standard for remote control via tablet or smartphone (Tuya Smart)

    Option – Identical wall thermostat as master/slave to control multiple GREENOR all from one thermostat.

  • PDF Summary GREENOR XL
