Voltaire 75

Voltaire 75

Collezione Belle Epoque

Elegant and decorative

  • BE-01 Gris Fonte

Elegant and decorative

Voltaire 75

Collezione Belle Epoque Radiatori in ghisa

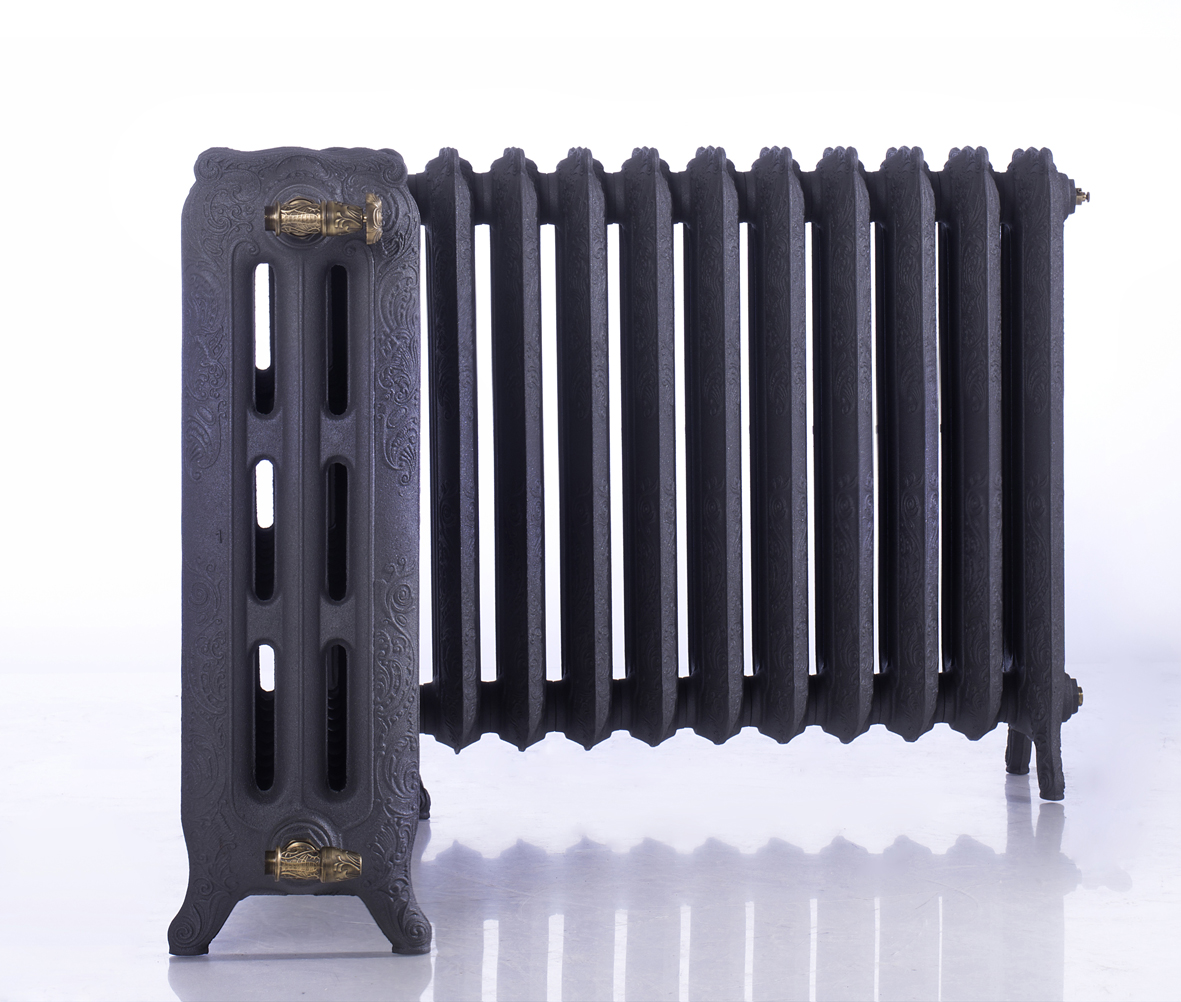

Elegante e decorativo, il modello Voltaire presenta degli ornamenti su tutta la sua superficie in ghisa. Con un’altezza di 76,6 cm, il modello Voltaire 75 rappresenta il radiatore in ghisa maggiormente usato. Voltaire incanterà gli amanti del design classico o vintage ricercando un comfort senza compromessi e di grande potenza, grazie al suo riscaldamento di qualità.

  • Details
    • Available colours:

    standard colours: cast iron grey, matt grey, matt black, pearl black.

    optional colours: bright white, antique black, antique copper, antique gold, all RAL colours.

    H76,8 cm x W41,4 cm – 66 kg – 725W
    H76,8 cm x W49,1 cm – 79 kg – 870W
    H76,8 cm x W55,8 cm – 91 kg – 1015W
    H76,8 cm x W64,5 cm – 104 kg – 1160W
    H76,8 cm x W72,2 cm – 117 kg – 1305W
    H76,8 cm x W79,9 cm – 130 kg – 1450W
    H76,8 cm x W87,6 cm – 143 kg – 1595W
    H76,8 cm x W95,3 cm – 155 kg – 1740W
    H76,8 cm x W103 cm – 168 kg – 1885W
    H76,8 cm x W110,7 cm – 181 kg – 2030W
    H76,8 cm x W118,4 cm – 194 kg – 2175W

    (Puissance EN442, 75/65/20, Δt 50°C)

  • Technologies

    Highly resistant, cast iron has an extraordinary quality of heating, it has survived the centuries (used for heating over 150 years).

    Made in Europe, the BELLE EPOQUE cast iron radiators come in several heights and finishes upon request. Available in Glossy White, Matte Black, Black Pearl, Cast Iron Gray or in such rarer finishes as Antique Gold and Antique Copper. They benefit from the latest manufacturing technology and are finished with fume-free, non-toxic and environmentally friendly paints.

    Maximum operating pressure: 8 bars. Pressure testing: 10,50 bars. Maximum output: 110°C Exponent: n = 1.3448

  • Installation
    • Imperative : The quality of water is required to meet the standards VDI 2035 for the cast iron radiators : a low conductivity below 100 μS.PH, a TH of 0.2 and a PH between 7 and 10. More information on : https://www.cinier.com/it/belle-epoque/
    • CAST IRON model, run by professionals suitable for handling and weighing the model
    • We recommend to use sleeving kits to minimize installation completion.
